Overview:
The CEL-FI WAVE Field Tool is a Windows-based software suite designed to test network readiness, perform maintenance, configure CEL-FI devices, and more. This free utility can be used on a Windows-based laptop or workstation, with or without internet connectivity.
Simply connect your CEL-FI device to the PC via Ethernet or USB and start the application to access following features:
1. Cloud Connection
2. Capture Log
3. SIM Card
4. DHCP Reset
5. Factory Reset
6. Software Update
7. Cloud Reset
8. Change Operator
For more details visit https://nextivityinc.com/software/wavefieldtool/
Log Collection:
1. Connect CEL-FI device through USB cable
2. Start up Wave Field Tool

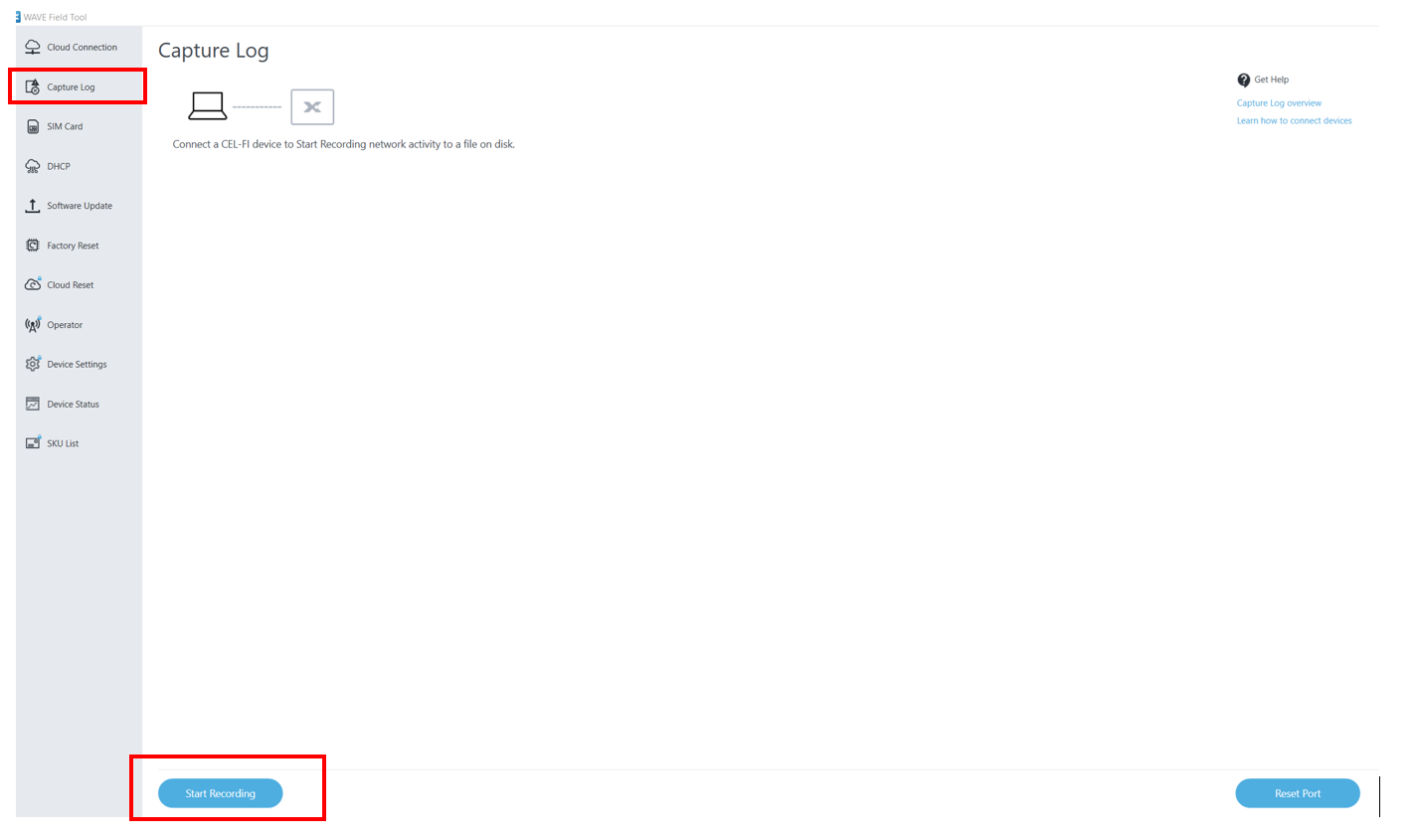

3. Navigate to Capture Log on the left hand side pane
4. Click on Start Recording

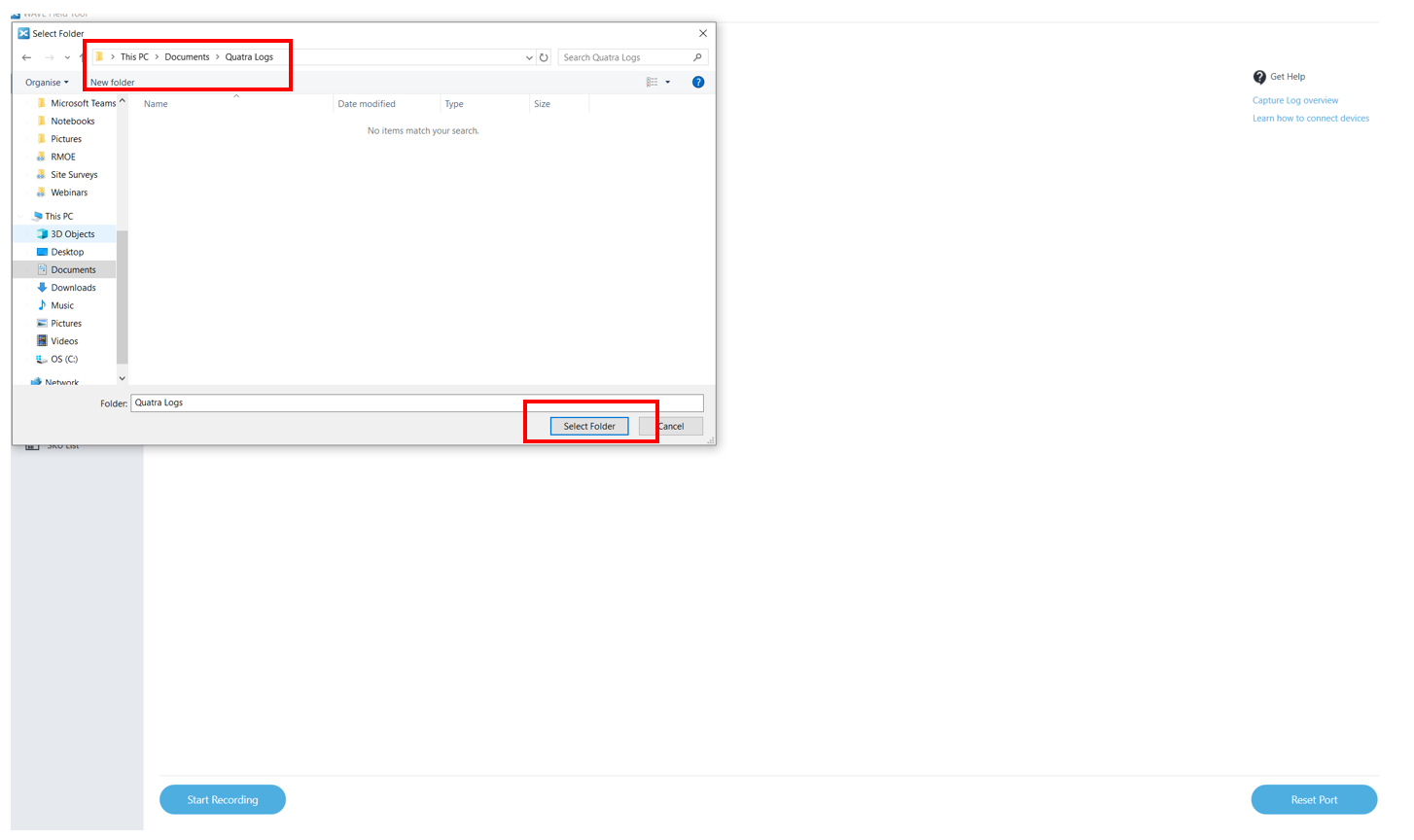

5. On the pop-up window navigate to the Directory where you want to save the logs

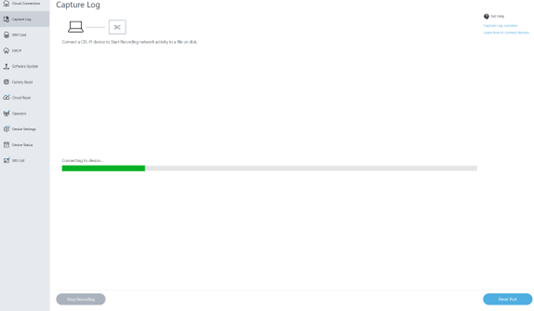

6. Once the directory is selected, Wave Field Tool will connect to the device and start recording logs.

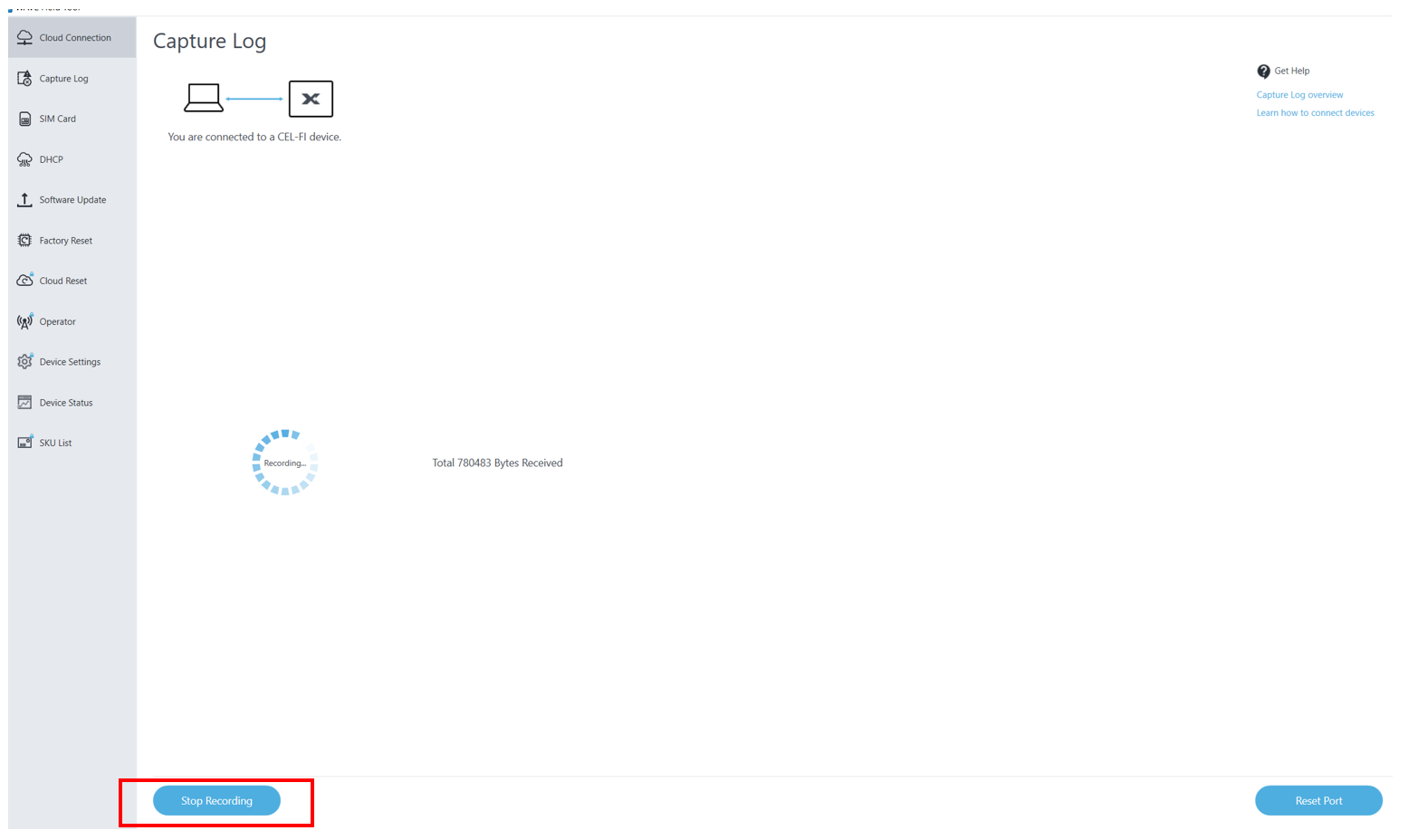

7. Once you have completed the duration of log requested, click on stop recording.

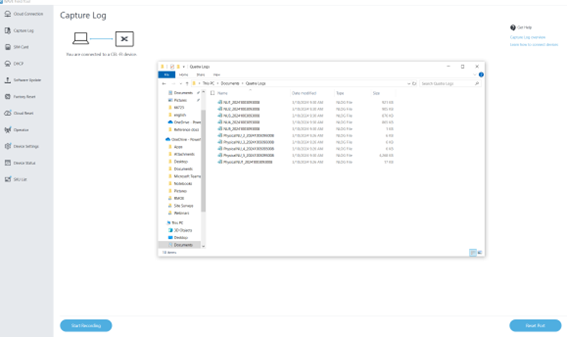

8. Navigate to the selected directory on your computer to find all logs
9. Email all logs, Serial Number of your device and reason for sharing the log to support@powertec.com.au

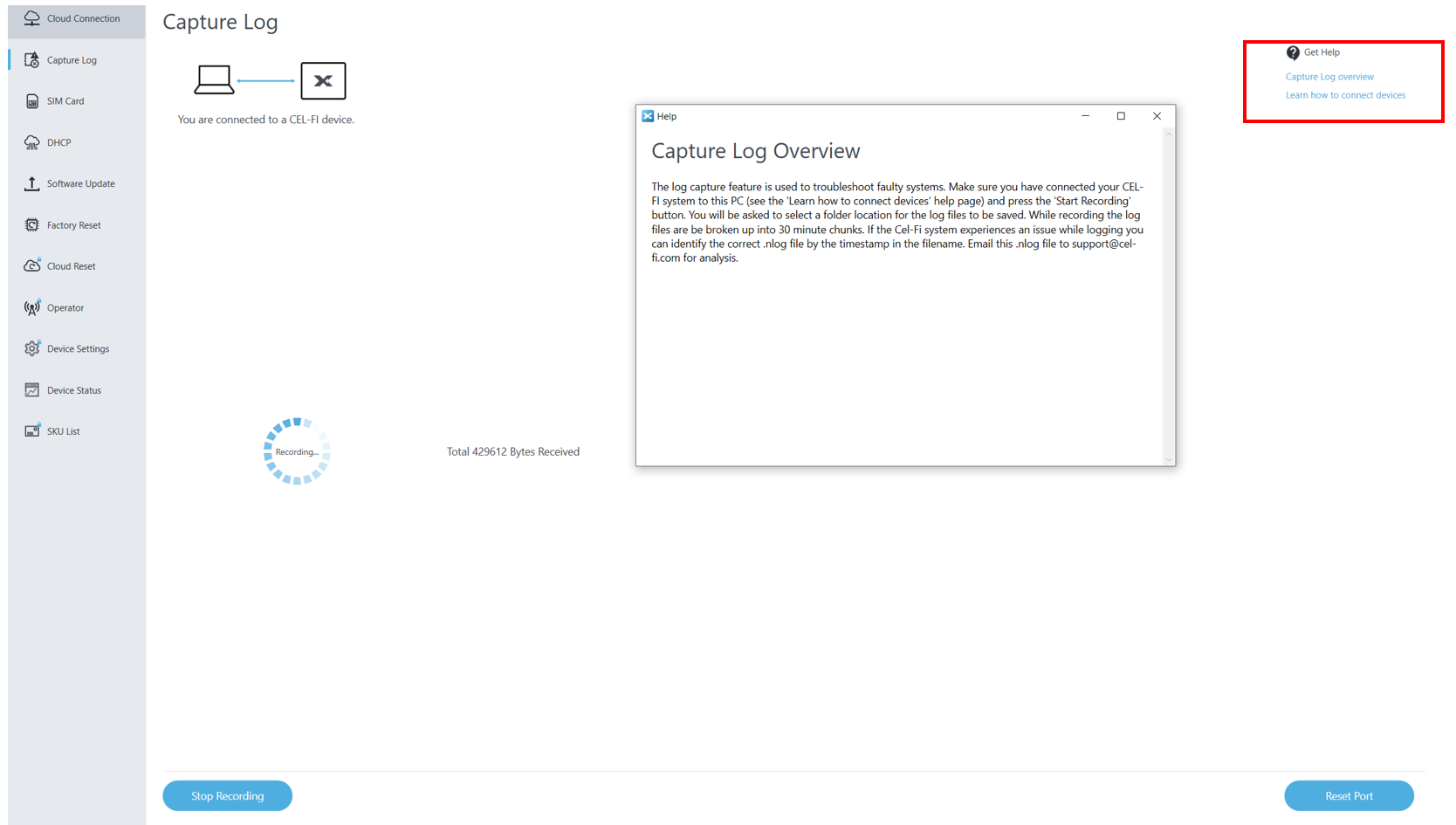

10. There are some basic troubleshooting / help link available under the Wave Field Tool/Capture Log tab
